LONGTRONIC® BUS RS-485 FD

Application
Comply to RS-485 communication protocol, apply to complicated controlled network of industrial automation self-control network communication of building. Different cable design can be used in different applications. Very suitable for drag chain or frequent movement.
Availability:
Quantity:
  • RS-485 FD
  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range   Fixed Application:

PUR: -40°C ~ 80°C

Moved Application:

PUR: -20°C ~ 70°C

—Test Voltage 1500V / min (AC)

—Characteristic Impedance 120±15Ω@ 1MHz

—Minimum Bending Radius     Fixed Application:

8D (D = cable diameter)

Moved Application:

15D (D = cable diameter)

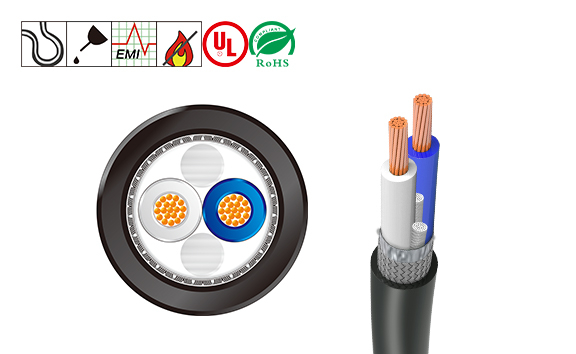

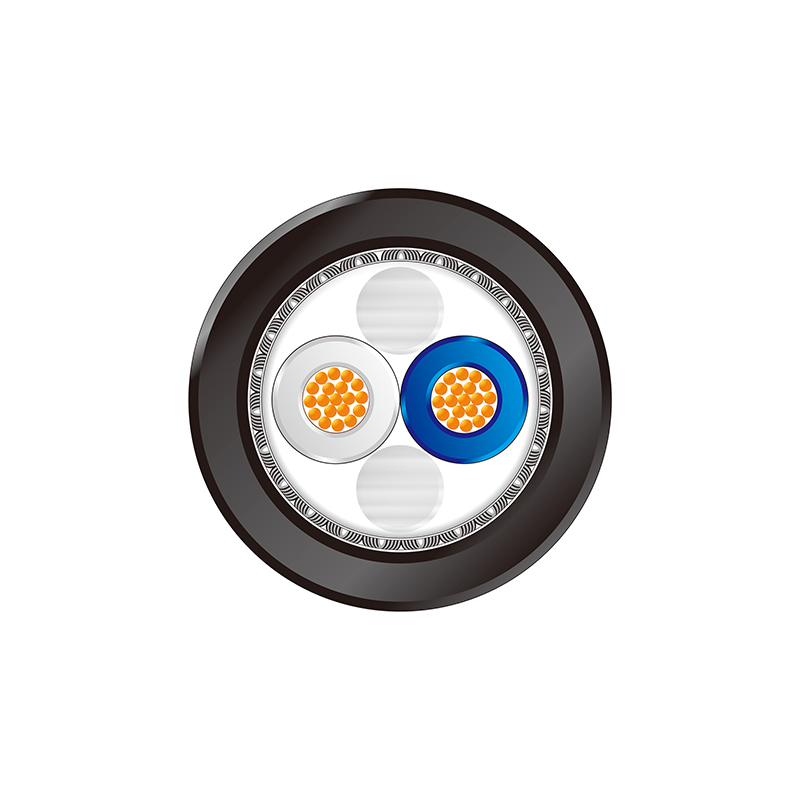

CABLE CONSTRUCTION

Conductor:

Fine stranded bare copper

Insulation:

Foamed PE

Shield:

AL / Mylar screen and tinned copper braiding

Jacket:

PVC

PUR

Color:

Black


FEATURES

Flame resistance according to IEC60332-1

Have good performance of resistant to external EMI

PUR jacket cable is extremely resistant to oil,abrasion and hydrolysis

Halogen free for PUR jacket cable
