LONGTRONIC® BUS DeviceNet

Application
Used in DeviceNet Bus system,connect industrial equipment in automation process. It's a lower cost network solution with opening network standard. One pair for data transmission and also other pair for the powersupply. Suitable for fixed application or occasional movement.
Quantity:
  • DeviceNet
  • zhaolong

TECHNICAL PARAMETERS

—Temperature Range   Fixed Application:

PVC: -20°C ~ 70°C

LSZH / PUR: -40°C ~ 80°C

Occasional Movement:

PVC: -5°C ~ 60°C

LSZH: -5°C ~ 70°C

PUR: -20°C ~ 60°C

—Test Voltage 1500V / min (AC)

—Characteristic Impedance 120±15Ω@ 1MHz

—Conductor DCR (20℃)   ≤53Ω/ km

—Rated Voltage   300V

—Insulation Resistance   24AWG≥1GΩ.km      22AWG≥10M.km

—Minimum Bending Radius     Fixed Application:

15D (D = cable diameter)

Occasional Movement:

15D (D = cable diameter)

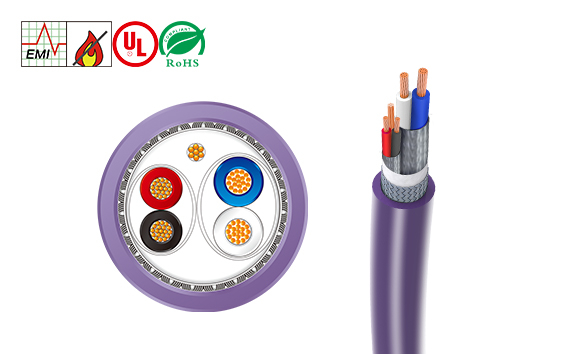

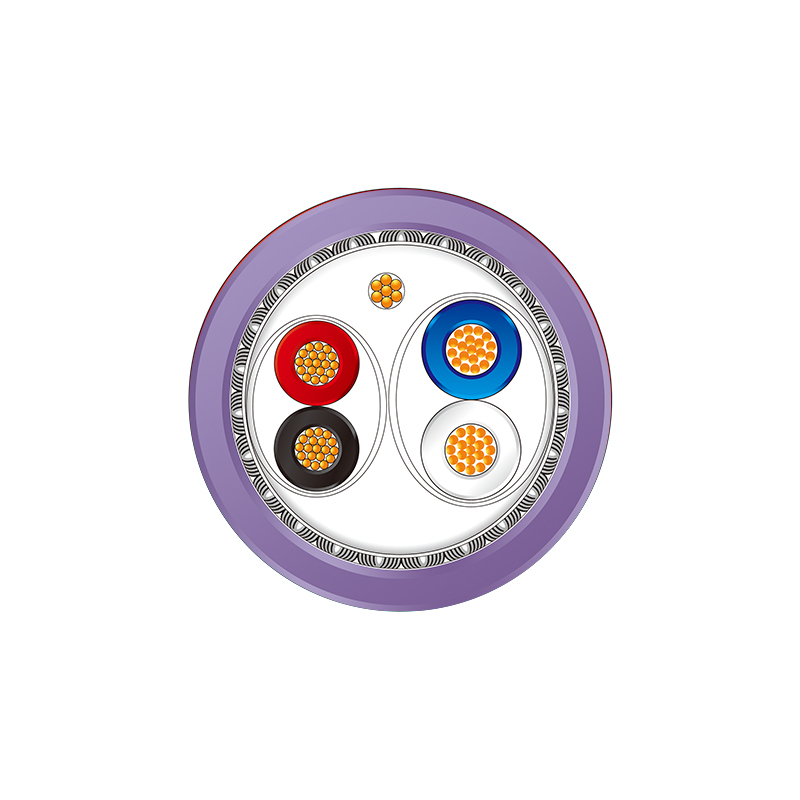

CABLE CONSTRUCTION

Conductor:

Stranded tinned copper

Insulation:

Foamed PE (24AWG),PE (22AWG)

Color:

White, blue (24AWG), red, black (22AWG)

Shielded:

AL / Mylar individual screen, and tinned copper overall braiding

Jacket:

PVC

LSZH

PUR

Color:

Purple (similar to RAL4001)


FEATURES

Flame resistance according to IEC60332-1

Have excellent performance of resistant to external EMI

Halogen free,low smoke for LSZH jacket cable

Power core and data are perfectly combineed within one cable
