TECHNICAL PARAMETERS
Temperature Range Fixed Application:
PVC / PUR: -40°C ~ 80°C
Moved Application:
PVC: -5°C ~ 60°C
PUR: -20°C ~ 70°C
—Test Voltage 1500V / min (AC)
—Characteristic Impedance 120±15Ω@ 1MHz
—Rated Voltage 300V
—Insulation Resistance 24AWG≥1GΩ.km 22AWG≥10M.km
—Minimum Bending Radius Fixed Application:
10D (D = cable diameter)
Moved Application:
15D (D = cable diameter)

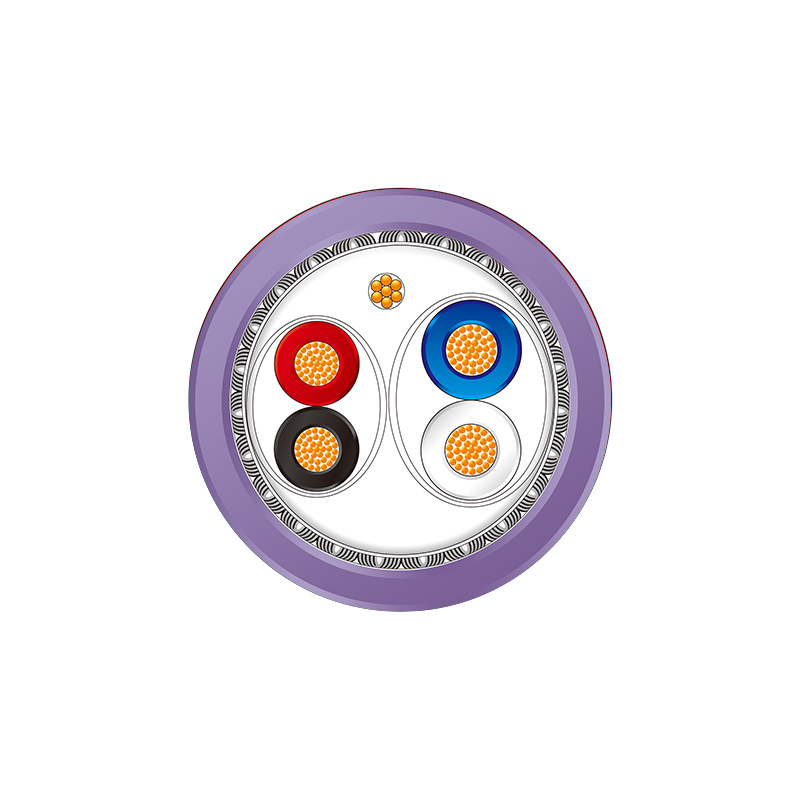

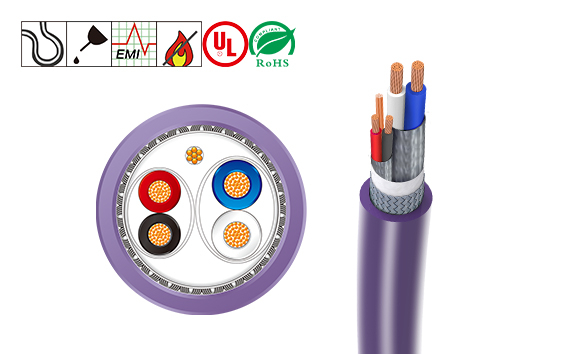

CABLE CONSTRUCTION
Conductor:
Fine stranded tinned copper wire
Insulation:
Foamed PE (24AWG),PE (22AWG)
Color:
White, blue (24AWG), red, black (22AWG)
Shielded:
AL / Mylar individual screen, and tinned copper overall braid
Jacket:
PVC
PUR
Color:
Purple (similar to RAL4001)
FEATURES
Flame resistance according to IEC60332-1
Have excellent performance of resistant to external EMI
PUR jacket cable is extremely resistant to oil,abrasion and hydrolysis
Power core and data are perfectly combineed within one cable
TECHNICAL PARAMETERS
Temperature Range Fixed Application:
PVC / PUR: -40°C ~ 80°C
Moved Application:
PVC: -5°C ~ 60°C
PUR: -20°C ~ 70°C
—Test Voltage 1500V / min (AC)
—Characteristic Impedance 120±15Ω@ 1MHz
—Rated Voltage 300V
—Insulation Resistance 24AWG≥1GΩ.km 22AWG≥10M.km
—Minimum Bending Radius Fixed Application:
10D (D = cable diameter)
Moved Application:
15D (D = cable diameter)
CABLE CONSTRUCTION
Conductor:
Fine stranded tinned copper wire
Insulation:
Foamed PE (24AWG),PE (22AWG)
Color:
White, blue (24AWG), red, black (22AWG)
Shielded:
AL / Mylar individual screen, and tinned copper overall braid
Jacket:
PVC
PUR
Color:
Purple (similar to RAL4001)
FEATURES
Flame resistance according to IEC60332-1
Have excellent performance of resistant to external EMI
PUR jacket cable is extremely resistant to oil,abrasion and hydrolysis
Power core and data are perfectly combineed within one cable
