CHARACTERISTIC
Cable flame retardancy meets iec60332-1-2
Wire to aluminum foil shielding and tinned copper braiding
Excellent anti external electromagnetic interference ability
Signal transmission frequency can reach 1000MHz

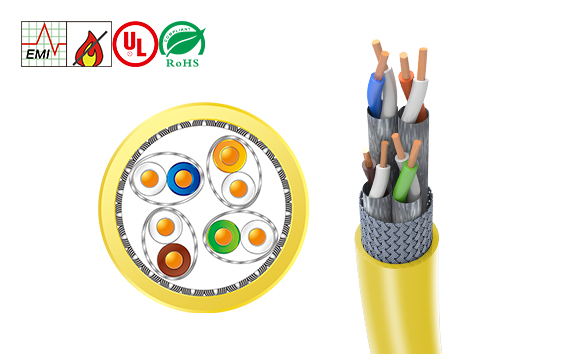

CABLE STRUCTURE
Conductor: solid bare copper conductor
Insulation: foamed PE
Shielding: wire to aluminum foil shielding plus tinned copper braiding
Sheath: PVC / LSZH
Color: yellow
TECHNICAL PARAMETER
Temperature range: - 40 ℃ ~ 80 ℃
Test voltage: 1000V / min (DC)
Characteristic impedance: 100 ± 15 Ω @ 100MHz
Insulation resistance: ≥ 5g Ω. Km
Minimum bending radius
Fixed application: 8D (d = cable diameter)
Reference standard
IEC61156-5、EN50173&ISO/IEC11801
