LONGTRONIC® ETHERNET CC-Link IE

It is used for CC-Link ie field network, connecting field configurable equipment and monitoring equipment, etc. to realize data management and control, which is simple and reliable. Suitable for fixed applications or occasional mobile applications.
Availability:
Quantity:
  • CC-Link IE

  • zhaolong

CHARACTERISTIC

The flame retardancy meets the requirements of iec60332-1-2

It has good anti external electromagnetic interference ability

Superior transmission performance

Pur sheath is especially oil resistant

Wear resistance and hydrolysis resistance

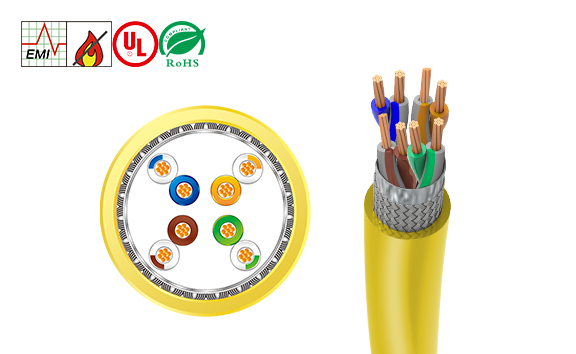

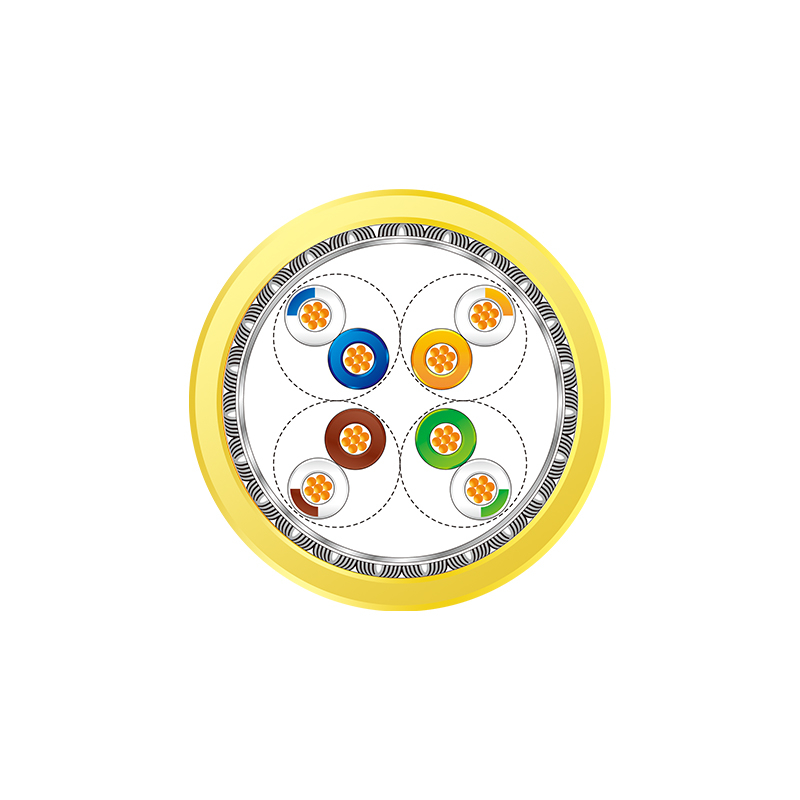

CABLE STRUCTURE

Conductor: stranded copper conductor

Insulation: PE

Shielding: aluminum foil wrapped and tinned copper braided

Sheath: PVC / pur

Color: yellow


TECHNICAL PARAMETER

temperature range

Fixed application: - 40 ℃ ~ 80 ℃

Occasional movement: - 5 ℃ ~ 60 ℃

Test voltage:

2000V/min(DC)

Characteristic impedance:

100±15Ω

Conductor DC resistance (20 ℃):

≤60Ω/km

Minimum bending radius

Fixed application:

8D (d = cable diameter)

Move occasionally:

15d (d = cable diameter)
