LONGTRONIC® ETHERNET WIND ENERGY CAT5e

As a high-speed data cable, it can be applied to the generic cabling system of cloud computing center, large data room, office, residential area, factory and other buildings. Shielded cables are especially suitable for the wiring of machines, equipment, instruments and control cabinets in industrial environments, and are suitable for limited flexible applications.
Availability:
Quantity:
Inquire Add to Basket

  • WIND ENERGY CAT5e

  • zhaolong

CHARACTERISTIC

Cable flame retardancy meets iec60332-1-2

Shielded type has excellent anti external electromagnetic interference ability, especially SF / UTP structure

Signal transmission frequency can reach 100MHz

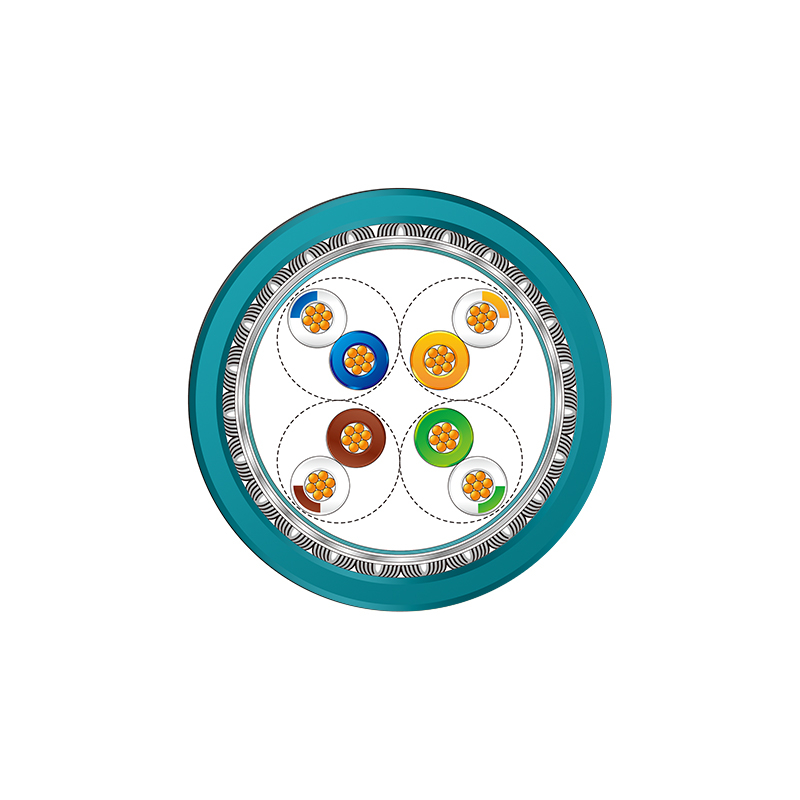

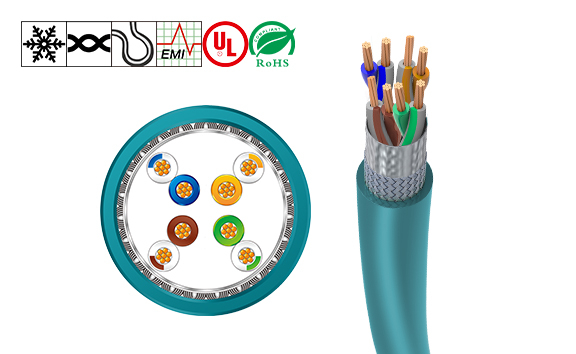

CABLE STRUCTURE

Conductor: stranded bare copper conductor

Insulation: PE

Shield: SF / UTP: aluminum foil shield plus tinned copper braid

Sheath: PVC / LSZH / pur

Color: blue, gray


TECHNICAL PARAMETER

temperature range

Fixed application: - 40 ℃ ~ 80 ℃

Occasional movement: - 5 ℃ ~ 60 ℃

Test voltage

1000V/min（DC）

characteristic impedance

100±15Ω@100MHz

insulation resistance

≥5GΩ.km

Minimum bending radius

Fixed application: 8D (d = cable diameter)

Occasional movement: 15d (d = cable diameter)

Reference standard

IEC61156-5, ANSI/TIA-568-C.2

EN50173&ISO/IEC11801
