LONGTRONIC® ETHERNET PROFINET TYPE R

Specially designed for PROFINET protocol, it is used in a wide range of industrial Ethernet occasions, such as the wiring of machines, equipment, instruments and control cabinets. Its performance conforms to CAT5e. Especially suitable for 3D motion of industrial robots.
Availability:
Quantity:
  • PROFINET TYPE R
  • zhaolong

CHARACTERISTIC

The flame retardancy meets the requirements of iec60332-1-2

It has good anti external electromagnetic interference ability

Superior transmission performance and good flexibility

Pur sheath is especially resistant to oil, abrasion and hydrolysis

Ultra high flexibility, meeting 1 million bending times, 5 million drag chain and torsion applications

The cable has excellent tensile and compressive properties

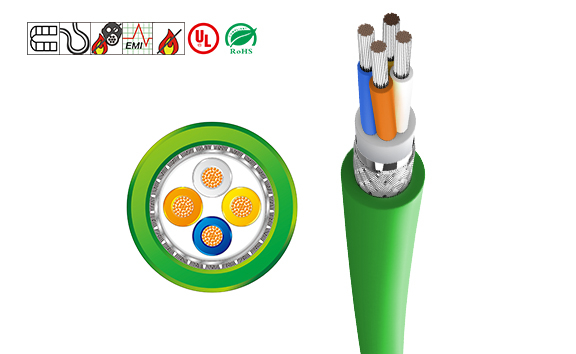

CABLE STRUCTURE

Conductor: high flexibility stranded conductor

Insulation: PE

Color: white, yellow, blue, orange

Shielding: aluminum foil wrapped and tinned copper braided

Sheath: pur

Color: green (approximately ral 6018)


TECHNICAL PARAMETER

temperature range

Fixed application: - 40 ℃ ~ 80 ℃

Mobile application: - 5 ℃ ~ 60 ℃

Test voltage: 2000V / min (AC)

Characteristic impedance: 100 ± 15 Ω

Conductor DC resistance (20 ℃): ≤ 60 Ω / km

Minimum bending radius

Fixed application: 4D (d = cable diameter)

Mobile application: 8D (d = cable diameter)
