TECHNICAL PARAMETERS
—Temperature Range
Fixed Application:
PVC / PUR: -40°C ~ 80°C
Moved Application:
PVC / PUR: -5°C ~ 70°C
—Test Voltage 1000V / min (DC)
—Characteristic impedance 100±15Ω
—Insulation resistance ≥5GΩ.km
—Minimum bending radius
Fixed Application:
5D (D = cable diameter)
Moved Application:
10D (D = cable diameter)
—Application of drag chain ≥10million times (S / UTPmodel)
—Reference standard IEC61156-5, ANSI / TIA-568-C.2 EN50173 & ISO / IEC11801

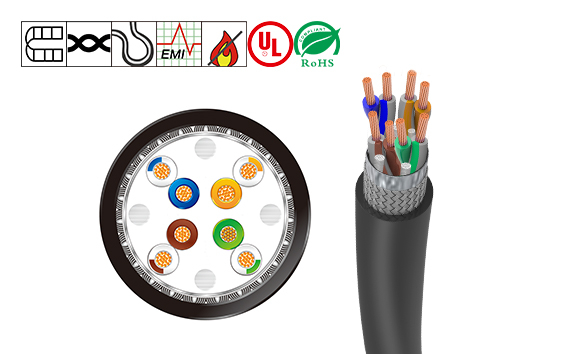

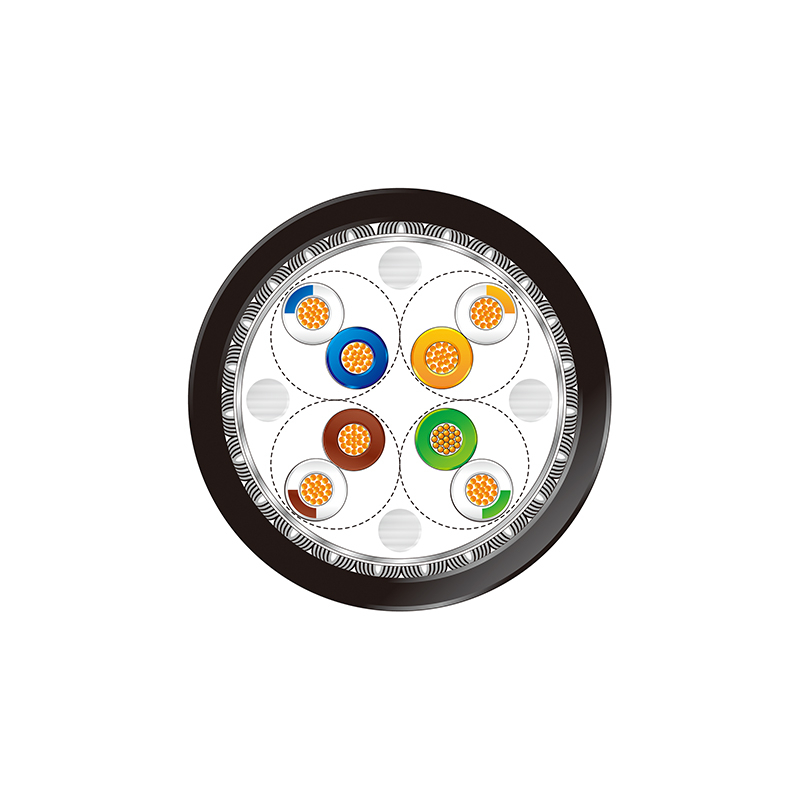

CABLE CONSTRUCTION
Conductor:
Flexible stranded copper wire, according to IEC60228 / VDE0295Class6
Insulation:
PE
SF / UTP:
AL / Mylar overall screen and tinned copper wire overall braid
S / UTP:
Tinned copper wire overall braid
Jacket:
PVC
PUR
Color:
Black
FEATURES
Flame resistance according to IEC60332-1
Good property of flexibility and small bending radius
Have good performance of resistant to external EMI Oil resistance
Transmission of signals up to 100 MHz
TECHNICAL PARAMETERS
—Temperature Range
Fixed Application:
PVC / PUR: -40°C ~ 80°C
Moved Application:
PVC / PUR: -5°C ~ 70°C
—Test Voltage 1000V / min (DC)
—Characteristic impedance 100±15Ω
—Insulation resistance ≥5GΩ.km
—Minimum bending radius
Fixed Application:
5D (D = cable diameter)
Moved Application:
10D (D = cable diameter)
—Application of drag chain ≥10million times (S / UTPmodel)
—Reference standard IEC61156-5, ANSI / TIA-568-C.2 EN50173 & ISO / IEC11801
CABLE CONSTRUCTION
Conductor:
Flexible stranded copper wire, according to IEC60228 / VDE0295Class6
Insulation:
PE
SF / UTP:
AL / Mylar overall screen and tinned copper wire overall braid
S / UTP:
Tinned copper wire overall braid
Jacket:
PVC
PUR
Color:
Black
FEATURES
Flame resistance according to IEC60332-1
Good property of flexibility and small bending radius
Have good performance of resistant to external EMI Oil resistance
Transmission of signals up to 100 MHz
cable construction
Conductor:
Flexiblestrandedcopper, accordingtoIEC60228 / VDE0295Class6
Insulation:
PE
SF / UTP:
AL / Mylaroverallscreenandtinned copperwireoverallbraid
S / UTP:
Tinnedcopperwireoverallbraid
Jacket:
Seethetablebelow
Color:
Black
cable construction
Conductor:
Flexiblestrandedcopper, accordingtoIEC60228 / VDE0295Class6
Insulation:
PE
SF / UTP:
AL / Mylaroverallscreenandtinned copperwireoverallbraid
S / UTP:
Tinnedcopperwireoverallbraid
Jacket:
Seethetablebelow
Color:
Black
features
FlameresistanceofcableaccordingtoIEC60332-1
Goodpropertyofflexibilityandsmaller bendingradius
Haveexcellentperformanceofresistanceto externalEMI Oilresistance
Transmissionofsignalsupto100MHz
features
FlameresistanceofcableaccordingtoIEC60332-1
Goodpropertyofflexibilityandsmaller bendingradius
Haveexcellentperformanceofresistanceto externalEMI Oilresistance
Transmissionofsignalsupto100MHz
