TECHNICAL PARAMETERS
—Temperature Range Fixed Application:
PVC: -20°C ~ 70°C
LSZH / PUR: -40°C ~ 80°C
Occasional Movement:
PVC: -5°C ~ 60°C
LSZH / PUR: -5°C ~ 70°C
—Test Voltage 1000V / min (DC)
—Characteristic Impedance 100±15Ω@ 100MHz
—Insulation Resistance ≥5GΩ.km
—Minimum Bending Radius Fixed Application:
8D (D = cable diameter)
Occasional Movement:
15D (D = cable diameter)
—Reference standard IEC61156-5, EN50173 & ISO / IEC11801

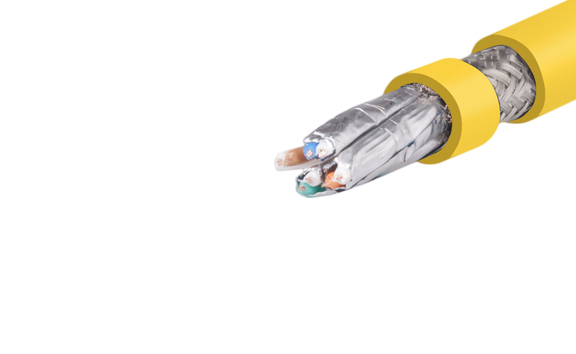

CABLE CONSTRUCTION
Conductor:
Stranded bare copper
Insulation:
Foamed PE
Shield:
AL/Mylar individual screen and tinned copper wire overall braid
Jacket:
PVC
LSZH
PUR
Color:
Yellow
FEATURES
Flame resistance of cable according to IEC60332-1
AL/Mylar individual screen and tinned copper wire braid
Have excellent performance of resistant to external EMI
PUR jacket cable has good properties of oil resistance and abrasion resistance
Transmission of signals up to 600 MHz
