TECHNICAL PARAMETERS
—Temperature Range Fixed Application:
PVC: -20°C ~ 70°C
LSZH / PUR: -40°C ~ 80°C
Occasional Movement:
PVC: -5°C ~ 60°C
LSZH / PUR: -5°C ~ 70°C
—Test Voltage 1000V / min (DC)
—Characteristic Impedance 100±15Ω@ 100MHz
—Insulation Resistance ≥5GΩ.km
—Minimum Bending Radius Fixed Application:
8D (D = cable diameter)
Occasional Movement:
15D (D = cable diameter)
—Reference standard IEC61156-5, ANSI / TIA-568-C.2EN50173 & ISO / IEC11801

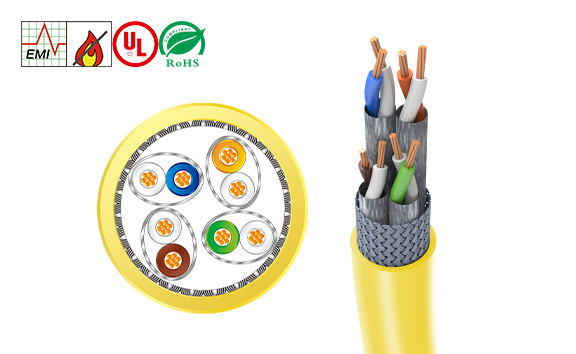

CABLE CONSTRUCTION
Conductor:
Stranded bare copper
Insulation:
Foamed PE
U / FTP:
AL / Mylar individual screen
F / FTP:
AL / Mylar individual screen and overall screen
S / FTP:
AL/Mylar individual screen and tinned copper wire overall braid
Jacket:
PVC
LSZH
PUR
Color:
Yello
FEATURES
Flame resistance of cable according to IEC60332-1
Have excellent performance of resistant to external EMI, especially for S / FTP
PUR jacket cable has good properties of oil resistance and abrasion resistance
Transmission of signals up to 500MHz
