Failures and Hazards of Ordinary Cables in Dynamic Environments

In modern industrial production, the continuous and stable operation of automated equipment is crucial to ensuring production efficiency. As the "neural network" for power and signal transmission in equipment, drag chain cables directly affect the efficiency and reliability of the entire production system. Particularly in low-voltage control systems of automated equipment (such as CNC machine tools, engraving machines, and woodworking machinery) and mechanical production lines, cables inside drag chain systems are long-term exposed to dynamic conditions like frequent bending and reciprocating movement, while also facing challenges such as mechanical friction and continuous stress impact. Ordinary cables are prone to failure in such scenarios, making specialized drag chain cables the key to ensuring stable system operation.

Frequent bending can easily cause insulation cracking and conductor breakage; repeated friction may lead to sheath damage and splitting; mechanical stress can result in sheath deformation and breakage, and long-term conductor fatigue can cause signal distortion. These issues directly affect the cable’s current-carrying capacity or signal quality.

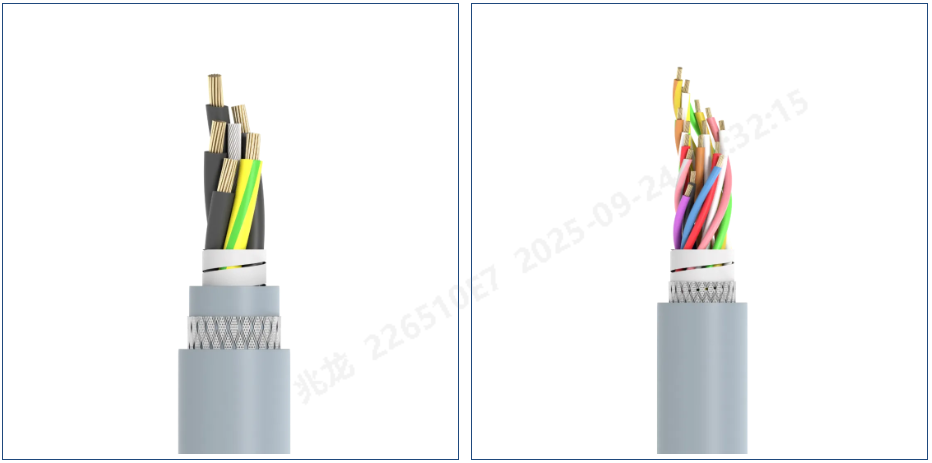

Zhaolong LONGFLEX Series drag chain cables: CHAIN FD 430 CY and CHAIN FD 430 CY-TP

Core Advantages of Zhaolong Drag Chain Cables

To address the pain points of ordinary cables in dynamic scenarios—such as bending failure, friction damage, and signal distortion—Zhaolong drag chain cables are specifically designed with targeted solutions for dynamic environments:

· The selection of highly flexible ultra-fine conductors and fatigue-resistant materials lays a solid foundation for withstanding frequent movement;

· An optimized core stranding structure prevents stress concentration and reduces the "barrel effect";

· A stable internal structure and wear-resistant sheath minimize core friction and sheath damage, extending service life;

· Some models are further equipped with anti-electromagnetic interference capabilities to ensure stable transmission of low-voltage control signals.

This series of cables is widely compatible with automated equipment and production lines, including CNC machine tools, engraving machines, woodworking machinery, and steel production lines. It is especially suitable for drag chain systems or scenarios requiring frequent movement. Its core performance advantages are as follows:

• Flame Retardant Safety

• The flame retardant performance meets standards such as FT2, IEC 60332-1-2, and UL VW-1, building a solid safety barrier for scenarios with high flammability and explosion risks (e.g., machine tool processing and steel production).

• Oil Resistance and Durability

• For oil-contaminated environments common in industry, models with PUR sheaths offer exceptional oil resistance, capable of withstanding erosion from mineral oils, lubricants, etc., ensuring long-term stable operation.

• Wide Temperature Adaptability

Depending on the sheath material:

· PVC-sheathed models are suitable for -40°C to 80°C (fixed applications) and -5°C to 70°C (mobile applications);

· PUR-sheathed models can withstand harsh temperature variations from -40°C to 90°C (fixed applications) and -25°C to 80°C (mobile applications).Whether in cold outdoor environments or high-temperature workshops, stable performance is maintained.

• High Flexibility and Bending Resistance

• It boasts excellent flexibility and can pass 3 to 20 million bending cycle tests. The minimum bending radius is only 3D (D = cable diameter) for fixed applications and 5D for mobile applications. This allows flexible cabing in narrow equipment spaces, greatly improving installation flexibility and adaptability.

Cross-Sectional Diagrams of Zhaolong LONGFLEX Series drag chain cables: CHAIN FD 837 CP and CHAIN FD 837 CP-TP

Drag Chain Cable Selection: Core Principles Based on Scenarios

When selecting drag chain cables, core principles should be followed based on actual scenarios:

• a. For high-speed automated production lines with high-frequency operation, select products with appropriate service life based on design requirements;

• b. In machinery manufacturing areas with oil contamination, prioritize models with strong oil resistance;

• c. When equipment internal space is limited, match cables with smaller bending radii;

• d. In complex industrial scenarios, simultaneously consider temperature adaptability range and flame retardant grade to reserve a safety margin for stable equipment operation.

From the tool magazine movement of CNC machine tools and the precise positioning of engraving machines, to the continuous operation of woodworking machinery and the collaborative work of automated production lines, Zhaolong drag chain cables have always played the key role of a "stable transmitter." With the development of the Industrial Internet, performance requirements for cables continue to rise. Relying on its scenario-specific design and proven reliable performance, Zhaolong drag chain cables will continue to provide strong support for efficient production in the automation field.
